Personal Project — Post-Tensioned Slab Design
Design the slab in order to obtain the ratio of reinforcement requested by the client.
- Area
- Not specified
- Year
- Not specified
- Scope
- Not specified
- Location
- Not specified
The Project
POST-TENSIONED SLAB DESIGN
What?
Design the slab in order to obtain the ratio of reinforcement requested by the client.
Provide a professional calculation report along with shop drawings showing the cables' elevations.
How?

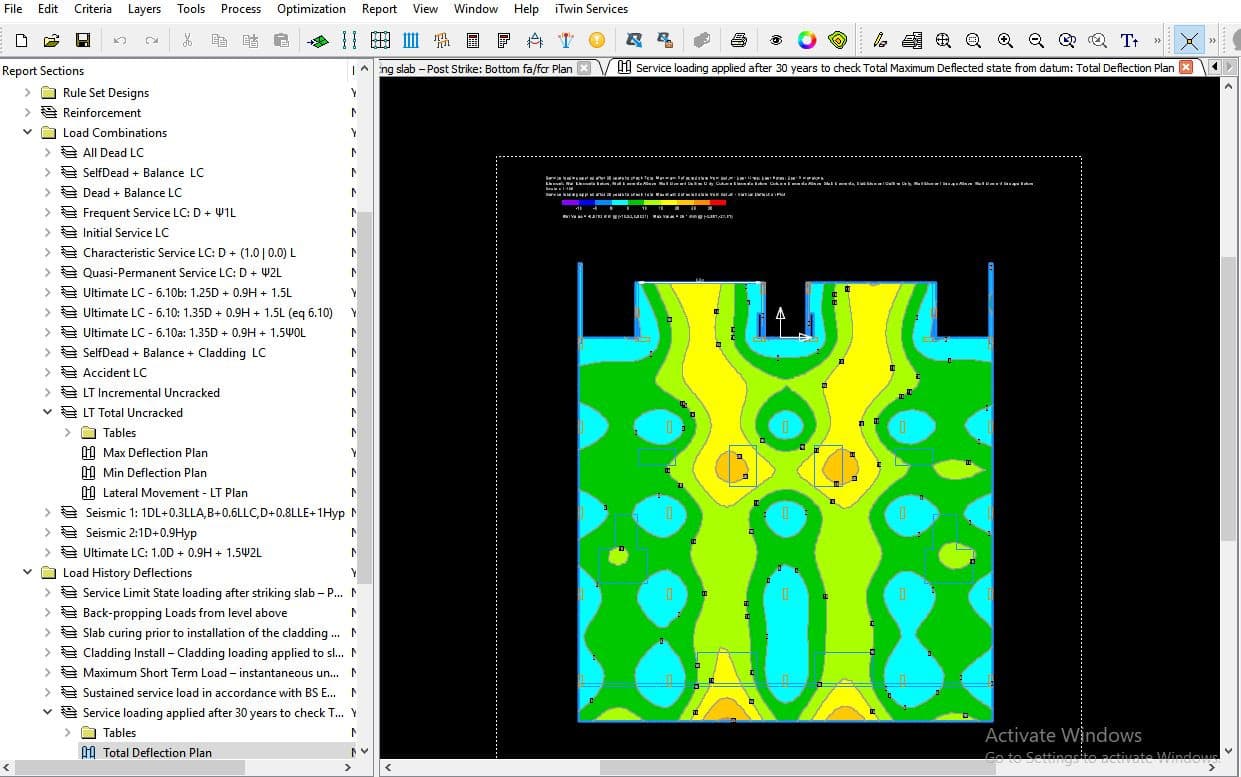

The main design software used is RAM Concept.
The key factor of the design is selecting the design strips, which led to the required reinforcement as specified by the client.

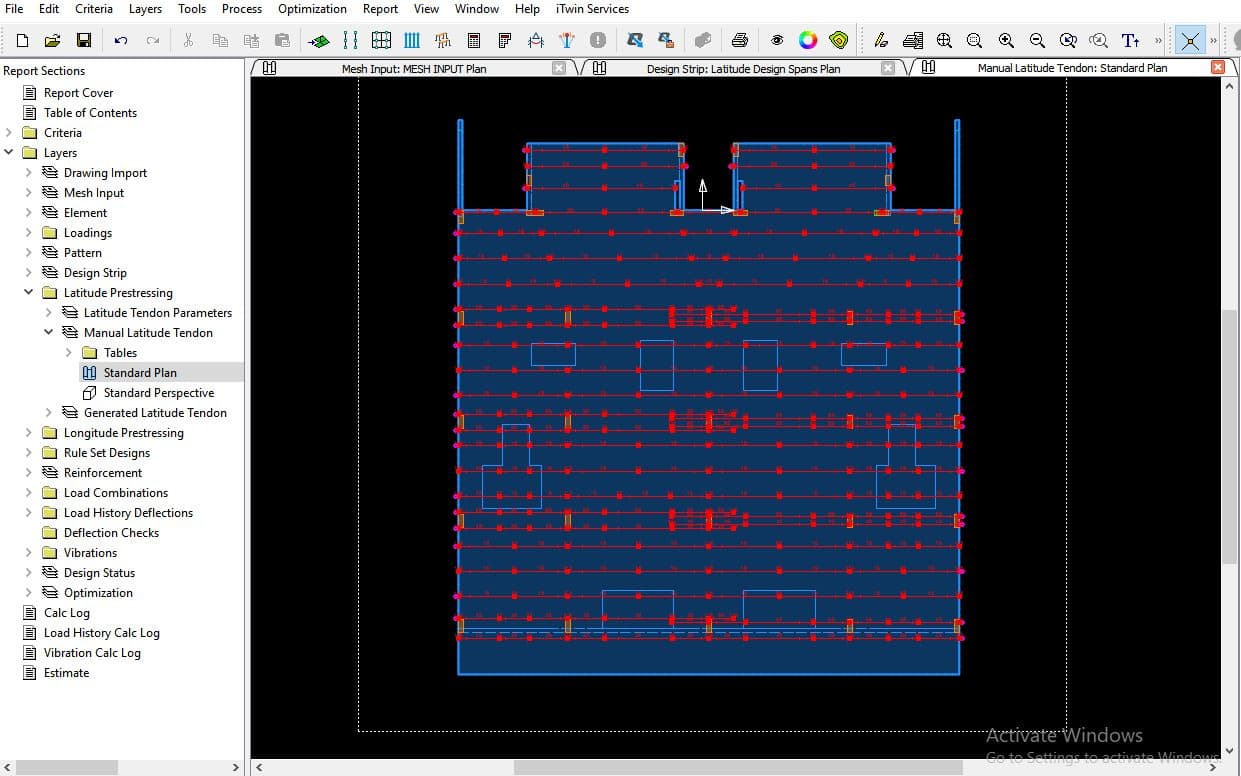

A detailed calculation report and drawings showing the cables' elevations and RC reinforcement are extracted directly from the software.
